Maximizing Your Solar Power with Mppt 75 15 Victron Energy

The MPPT 75 15 Victron Energy is a highly efficient solar charge controller designed to optimise solar panels’ performance in charging 12V battery systems. It utilizes Maximum Power Point Tracking (MPPT) technology to maximize the energy harvest from the solar panels by constantly adjusting the operating point of the panels. It ensures that the controller operates at the most efficient voltage and current levels regardless of the weather conditions or battery state of charge. They’re ideal for applications such as RVs, boats, cabins, and other off-grid setups where maximizing solar energy utilization is crucial.

Introduction to Victron 75 15

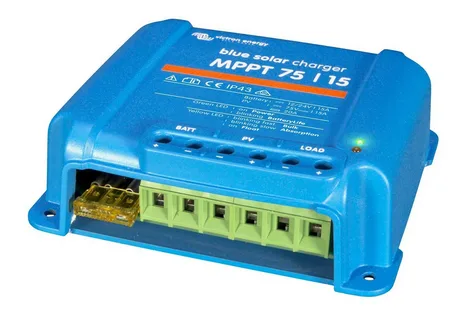

The Victron 75 15 is a cutting-edge solar charge controller designed to enhance the efficiency and performance of solar energy systems. This advanced device incorporates Maximum Power Point Tracking (MPPT) technology, enabling it to optimise solar panels’ energy output. By continuously adjusting its operating parameters to match the maximum power point of the solar array, the MPPT 75/15 ensures that the system operates at peak efficiency, even under varying weather conditions or shading.

With a maximum PV open circuit voltage of 75V and a maximum charge current of 15A, the MPPT 75/15 is well-suited for 12V battery systems commonly used in RVs, boats, cabins, and other off-grid applications. Its compact size and robust construction make it versatile and reliable in diverse environmental conditions. The controller also features comprehensive protection mechanisms to safeguard the batteries and itself against overcharging, overheating, and short-circuiting.

Victron Energy is recognized globally for its commitment to quality and innovation in renewable energy solutions, and the MPPT 75/15 exemplifies this with its high efficiency, durability, and user-friendly design. Whether you want to maximize the energy harvest from your solar panels or ensure a reliable power supply in remote locations, the MPPT 75/15 offers a dependable solution backed by Victron’s reputation for excellence.

Benefits of 75 15 Victron for Solar Power Systems

When it comes to harnessing the sun’s power, choosing the right charging system is crucial for maximizing the efficiency and effectiveness of your solar power system. The 75 15 Victron charging is a game-changer in this regard, offering a multitude of benefits that can significantly impact the performance and profitability of your solar setup. One of the most significant advantages of MPPT charging is its ability to optimize energy harvesting, allowing your system to capitalize on the maximum available power from the sun.

It means that even on partially cloudy days or during periods of low sunlight, your solar panels will be able to generate more power than they would with traditional charging methods. Additionally, MPPT charging systems are designed to handle various power input levels, making them highly adaptable to changing environmental conditions.

This adaptability ensures that your system can operate at peak efficiency, even in the face of unexpected changes in sunlight or weather patterns. By leveraging the benefits of MPPT charging, you can expect a significant increase in your solar power system’s overall performance and reliability, ultimately leading to greater energy independence and a reduced carbon footprint.

Understanding the Importance of Victron Mppt 75 15

In the world of solar power, a crucial component that often goes unnoticed is the Maximum Power Point Tracking (MPPT) charging system. At its core, Victron Mppt 75 15 is a sophisticated technology that optimizes the energy harvesting process by precisely identifying and tracking the maximum power output of a solar panel. It allows maximum energy to be extracted from the sun, significantly increasing overall system efficiency.

On the other hand, traditional charge controllers operate at a fixed voltage and current, which can lead to a significant energy loss during the charging process. MPPT charging, on the other hand, can adapt to changes in the solar panel’s output, ensuring that the maximum amount of energy is transferred to the battery.

MPPT charging has numerous benefits. By optimizing the energy harvesting process, MPPT charging systems can increase the amount of energy generated by up to 30% compared to traditional charge controllers. This means that with MPPT charging, you can generate more energy from the same solar panel, making it an ideal solution for off-grid solar systems, RVs, and boats.

Choosing the Right Victron Energy MPPT 75 15 for Your System

Choosing the right Victron Energy MPPT 75 15 for your system involves considering several key factors to ensure optimal performance and compatibility:

• System Voltage: The MPPT 75/15 is designed for 12V battery systems. Ensure your solar panel array and battery bank are compatible with this voltage specification. If you have a different battery voltage (e.g., 24V or 48V), you need a different model suitable for that voltage.
• Solar Panel Specifications: The MPPT 75/15 has a maximum PV open circuit voltage of 75V. Check the specifications of your solar panels to ensure that their Voc (Open Circuit Voltage) does not exceed this limit. Also, consider the total wattage of your solar panels to ensure they do not exceed the controller’s maximum input power rating.
• Maximum Current Rating: The MPPT 75/15 can handle a maximum charge current of 15A. Calculate the total current your solar panels can generate under ideal conditions to ensure it does not exceed this limit. This is crucial for preventing overheating and ensuring efficient operation.
• Application and Environment: Consider where and how the MPPT 75/15 will be used. It’s suitable for various off-grid applications, such as RVs, boats, cabins, and remote installations. Ensure it can withstand your location’s environmental conditions (temperature range, humidity, etc.).

How to Install Victron Energy’s MPPT Charger

Installing Victron Energy’s MPPT charger is crucial in maximizing your solar power system. The installation process is relatively straightforward, but following the manufacturer’s instructions and taking necessary safety precautions to ensure a safe and efficient installation is essential. The Victron Energy MPPT charger is a highly versatile and efficient device that can charge various battery chemistries, from lead-acid to lithium-ion. Its compact design and user-friendly interface make it an ideal solution for multiple applications, from small off-grid systems to large-scale commercial installations.

To begin the installation process, mount the MPPT charger in a well-ventilated area away from direct sunlight and moisture. Next, connect the solar panels to the MPPT charger using MC4 connectors or a compatible adapter. Be sure to match the polarity of the solar panels to the MPPT charger’s input terminals. Once the solar panels are connected, connect the battery to the MPPT charger’s output terminals. Match the battery’s polarity to the MPPT charger’s output terminals.

After connecting the solar panels and battery:

• Configure the MPPT charger’s settings using the Victron Energy Connect portal or the VE.
• Bus Bluetooth module. It will allow you to monitor the charger’s performance, adjust settings, and troubleshoot any issues.
• Plug in the MPPT charger and turn it on. The charger will automatically detect the solar panels and battery and begin optimally charging the battery.

Following these simple steps, you can successfully install Victron Energy’s MPPT charger and maximise your solar power system’s performance. Always follow the manufacturer’s instructions and take necessary safety precautions to ensure a safe and efficient installation.

Mppt Victron Energy

The MPPT Victron Energy is a versatile and efficient solar charge controller designed to maximize the energy harvest from solar panels in 12V battery systems. Utilizing advanced Maximum Power Point Tracking (MPPT) technology, it continuously adjusts its operating parameters to extract the maximum power available from the solar array, regardless of weather conditions or shading.

With a maximum PV open circuit voltage of 75V and a maximum charge current of 15A, the MPPT 75/15 is well-suited for smaller solar installations such as RVs, boats, cabins, and other off-grid applications. Its compact size and robust construction ensure reliability and durability in diverse environmental conditions.

The controller includes comprehensive protection features to safeguard both the batteries and itself from overcharging, overheating, and short-circuiting, thereby extending the lifespan of the system components. Backed by Victron Energy’s reputation for quality and innovation, the MPPT 75/15 offers a reliable solution to enhance the efficiency and performance of solar energy systems, providing peace of mind for users seeking sustainable and reliable power solutions.

Advanced Features and Settings for Victron Energy’s MPPT Charger

As you delve deeper into the world of Victron Energy’s MPPT chargers, you’ll discover a wealth of advanced features and settings that can be tailored to optimize your solar power system’s performance. One of the most exciting aspects of these chargers is their ability to adapt to changing solar conditions, ensuring that your batteries are always charged to the maximum capacity. The Victron Energy VE. Can communication protocol, for instance, enable seamless communication between the MPPT charger and other Victron Energy products, allowing for real-time monitoring and control of your system?

Another advanced feature worth exploring is the MPPT charger’s ability to handle complex charging scenarios, such as unequal solar array sizes or mismatched battery banks. With Victron Energy’s MPPT charger, you can rest assured that your system will be able to adapt to these complexities, ensuring that your batteries are always charged efficiently and safely.

Furthermore, the Victron Energy MPPT charger’s built-in settings and features allow for precise control over the charging process, including setting specific charging profiles, adjusting the voltage and current limits, and monitoring system performance in real-time. Whether you’re a seasoned veteran of solar power systems or just starting, Victron Energy’s MPPT charger offers unparalleled customisation and control in the industry.

Tips for Maintaining and Upgrading Your Solar Power System

As your solar power system continues to generate clean energy and power your off-grid home or business, it’s essential to prioritize its maintenance and upkeep to ensure optimal performance. A well-maintained system can last for decades, but neglect and wear can reduce efficiency, lifespan, and even costly repairs. In this crucial step, we’ll dive into the importance of regular maintenance and upgrading your solar power system, providing you with practical tips and best practices to maximize your Victron Energy system’s lifespan and performance.

From cleaning the panels to monitoring system performance, we’ll cover the essential tasks to keep your solar array in top shape. We’ll also discuss the importance of upgrading your system as technology advances, ensuring you stay ahead of the curve and take advantage of the latest innovations.

By following these tips, you’ll be able to:

• Identify and address potential issues before they become major problems.
• Optimize your system’s performance to maximize energy production.
• Stay informed about the latest advancements in solar power technology.
• Plan and budget for future upgrades and expansions
• Extend the lifespan of your system, reducing the need for costly replacements.

By investing time and effort into maintaining and upgrading your solar power system, you’ll reap the rewards of a reliable, efficient, and sustainable energy source for years to come. In this section, we’ll provide you with the knowledge and expertise you need to get the most out of your Victron Energy system, ensuring a bright and sustainable future for your off-grid home or business.

Conclusion

In conclusion, the Mppt 75 15 Victron Energy is a reliable and efficient solar charge controller tailored for 12V battery systems. Its use of Maximum Power Point Tracking (MPPT) technology ensures optimal energy extraction from solar panels, adapting dynamically to varying environmental conditions. With a maximum PV open circuit voltage of 75V and a charge current capacity of 15A, it is well-suited for applications like RVs, boats, cabins, and off-grid setups where space and efficiency are paramount.

FAQS

What Battery Types Are Compatible With The MPPT 75/15?

The MPPT 75/15 is compatible with 12V battery systems, including lead-acid (flooded, AGM, gel) and lithium-ion batteries.

What Is The Maximum Solar Panel Wattage I Can Connect To The MPPT 75/15?

The MPPT 75/15 can handle a maximum input power (Wattage) of up to 200W with a 12V battery system.

Can I Use The MPPT 75/15 In Parallel For Higher Current Applications?

No, the MPPT 75/15 is designed for single-controller applications. For higher current requirements, consider Victron’s controllers intended for parallel operation.
